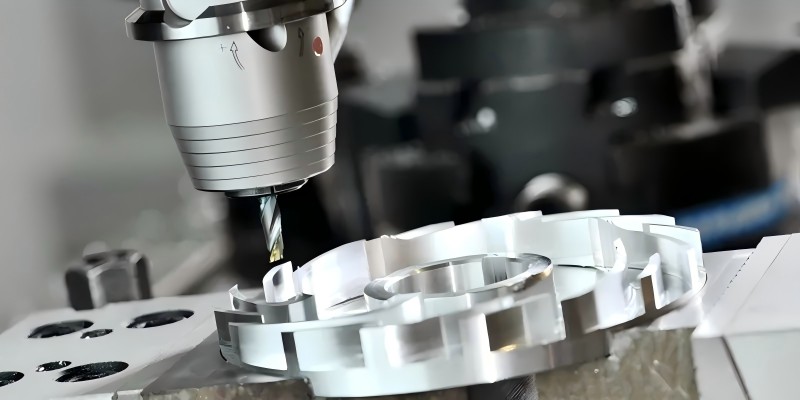

CNC (Computer Numerical Control) machining has become a key component in the manufacturing sector due to its ability to produce highly accurate and complex parts.
However, meeting the required precision in machining operations is not just a matter of using advanced machines and tools—it requires adherence to strict tolerance standards.
This article examines the significance of tolerance requirements, their use, and the different influencing elements in CNC machining.
What Are CNC Machining Tolerances?
Tolerances in CNC machining refer to the permissible variations allowed in a part’s dimensions from its design specifications. These variations accommodate the limitations of machining processes and ensure that parts meet the required function. Tolerances are essential for ensuring that a part will function correctly in its intended assembly, especially when it needs to fit with other components or perform under demanding conditions.
CNC machining tolerances can vary depending on several factors such as:
- Part Design: Complex designs with tight specifications often require more precise tolerances.
- Material: Different materials (metals, plastics, composites) have varying machinability and can affect the achievable tolerances.
- Machine Capability: More advanced CNC machines can hold tighter tolerances due to better precision control.
- Cutting Tools: Tool wear over time affects precision, making it essential to monitor tool quality when machining tight tolerances.
For example, typical CNC machining tolerances for a well-calibrated machine may range from ±0.005 mm to ±0.1 mm, depending on the part’s size and application.
Why Are Tolerances Important in CNC Machining?
Tolerances play a crucial role in CNC machining for several reasons:
- Functionality: Parts often need to fit or interact with other components in an assembly. Incorrect tolerances can lead to part misalignment or failure.
Safety: In industries like aerospace, automotive, and medicine, accuracy is critical to guaranteeing the dependability and safety of the finished product. - Cost-Efficiency: By specifying appropriate tolerances, manufacturers can optimize production time and costs. Overly tight tolerances increase machining time and tool wear, driving up costs unnecessarily.
Tolerances are generally divided into two categories:
- Dimensional tolerances control the allowable variations in part sizes, such as length or diameter.
- Features such as parallelism, perpendicularity, and flatness are governed by geometric limitations in terms of their shape, orientation, and location.
Common Tolerance Standards in CNC Machining
To ensure consistency across industries and applications, various international standards govern CNC machining tolerances. Some of the most widely recognized standards include:
ISO 2768: ISO 2768 is a widely adopted standard for general tolerances, primarily for linear and angular dimensions and geometrical properties. It provides default tolerances when no specific tolerances are indicated on technical drawings. There are two sections to the standard:
- ISO 2768-1: In the absence of specified tolerances, general tolerances are used for linear and angular measurements.
- ISO 2768-2: General geometrical tolerances for features without specified tolerances, including flatness, straightness, perpendicularity, and concentricity.
Tolerances are further divided into four groups by ISO 2768: fine (f), medium (m), coarse (c), and very coarse (v). This allows manufacturers to specify tolerances based on the precision required for a specific part. - ASME Y14.5: In North America, the ASME Y14.5 standard is widely used for Geometric Dimensioning and Tolerancing (GD&T). It defines how to express geometric tolerances on engineering drawings and ensures that part geometry, orientation, and position meet design requirements.
- DIN Standards: Germany’s DIN standards also provide guidelines for CNC machining tolerances, similar to ISO and ASME standards, ensuring precision and reliability across various industries.
Tolerance Classes in ISO 2768
ISO 2768 categorizes tolerances into four classes, allowing flexibility based on the precision needed for each specific part:
- Fine (f): Fine tolerance is used for parts requiring high precision, such as in the aerospace, medical, and precision engineering industries. Minor deviations in these applications can lead to part malfunction, making tight tolerances critical.
- Medium (m): Medium tolerance is the most common tolerance class used in general mechanical engineering. It provides a balance between precision and manufacturing efficiency, suitable for many industrial applications.
- Coarse (c): Coarse tolerance is used when parts do not require high precision, often for large components or rough machining operations where further finishing will be applied later.
- Very Coarse (v): This tolerance class is rarely used and applies to rough-cut components where precision is not critical. It is suitable for components where fit and finish are not as important, such as rough castings or early-stage processing.
How Tolerances Impact CNC Machining Costs
The tighter the tolerance required, the higher the production costs. Achieving very tight tolerances increases machining time, wears down cutting tools faster, and often requires more advanced machines or additional processes like grinding or polishing. Therefore, it is important to balance precision needs with cost efficiency.
For example:
Tight tolerances are essential for parts with critical dimensions, like those in aerospace or medical devices. They ensure the part functions properly but can significantly increase machining costs.
Relaxed tolerances are suitable for non-critical dimensions, allowing faster production, less tool wear, and lower costs—especially for large-scale manufacturing.
Factors Influencing CNC Machining Tolerances
Several factors influence the achievable tolerances in CNC machining, including:
- Material Selection and Tool Condition: Different materials affect how easily tight tolerances can be achieved. Softer materials like aluminum are easier to machine with high precision, while harder materials like titanium require advanced tools and slower feed rates to achieve the same tolerances. The sharpness and condition of cutting tools also impact precision.
- Part Geometry: Complex geometries with intricate details and small features require more precise machining, often necessitating tighter tolerances. Simpler parts can tolerate larger deviations.
- Machining Environment: The stability of the CNC machine and the overall environment, including temperature fluctuations, can affect tolerances, causing materials to expand or contract, and impacting final dimensions.
- Machining Method: Different CNC methods, such as milling, turning, or grinding, have varying capabilities for maintaining tight tolerances. For example, smooth surfaces and fine tolerances are frequently achieved through grinding.
Choosing the Right Tolerance Standard
When designing a part for CNC machining, it’s crucial to select the appropriate tolerance class based on the part’s function, material, and cost considerations. Collaborating with CNC machinists during the design process ensures that tolerances are feasible and cost-effective.
For instance, critical components like precision gears often require fine tolerances (f) to ensure proper function and safety. General mechanical parts like housings typically use medium tolerances (m) for a balance between precision and cost. Non-critical parts, such as prototypes, can use coarse tolerances (c), allowing for faster machining at lower costs.
Conclusion
Tolerance standards are a fundamental aspect of CNC machining, ensuring parts are manufactured with the precision needed for their intended applications. ISO 2768 provides a widely recognized framework for defining these tolerances, simplifying the design and manufacturing process while ensuring quality.
By applying the right tolerance standards, manufacturers can optimize their operations, reduce costs, and improve the quality of CNC machined parts.
