Сварка — это фундаментальный процесс в обрабатывающей промышленности, обеспечивающий возможность прочного и точного соединения металлов и других материалов.
Основа эффективной сварки металлов заключается не только в опытных сварщиках и методах сварки, но и в выборе подходящего типа соединения, поскольку каждое из них имеет определенные преимущества и проблемы в зависимости от области применения.
Пять основных типов сварных соединений включают стыковое соединение, нахлесточное соединение, тавровое соединение, угловое соединение и торцевое соединение.
В этой статье мы рассмотрим их характеристики, преимущества, недостатки, сварочные процессы и области применения, а затем рассмотрим, как выбрать правильный тип соединения.

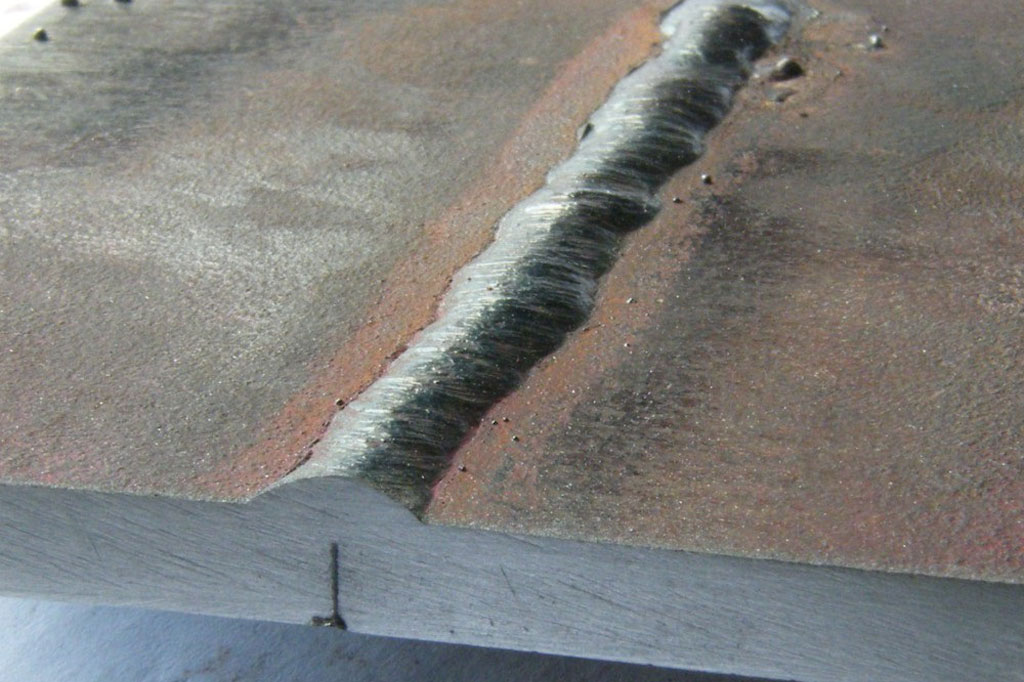

1. Стыковое соединение
Стыковое соединение является наиболее широко используемым сварным соединением, состоящим из двух металлических деталей, выровненных в одной плоскости и соединенных по краям. Его простота делает его популярным выбором для структурных применений, где компоненты должны быть соединены в плоском или линейном расположении.
Преимущества стыкового соединения:
- Простота установки и сварки, что делает его экономически эффективным.
- Позволяет создавать прочные, долговечные соединения при правильной сварке.
- Минимальное перекрытие материалов, что приводит к меньшему количеству отходов.
Недостатки стыкового соединения:
- Требует точной подготовки кромок для прочных сварных швов.
- Более низкая прочность по сравнению с другими типами соединений при воздействии определенных нагрузок.
Процесс сварки стыковых соединений
Стыковые соединения обычно сваривают с использованием таких методов, как сварка MIG, TIG или дуговая сварка. Правильная подготовка кромок имеет важное значение для обеспечения прочного сварного шва. Это часто включает в себя скашивание кромок, особенно для более толстых материалов, чтобы позволить сварочному электроду глубоко проникнуть в соединение.
Применение стыковых соединений
Стыковые соединения используются при строительстве трубопроводов, металлических каркасов, автомобильных деталей и конструктивных элементов, таких как балки и колонны. Их простота и универсальность делают их незаменимыми в различных сварочных работах.

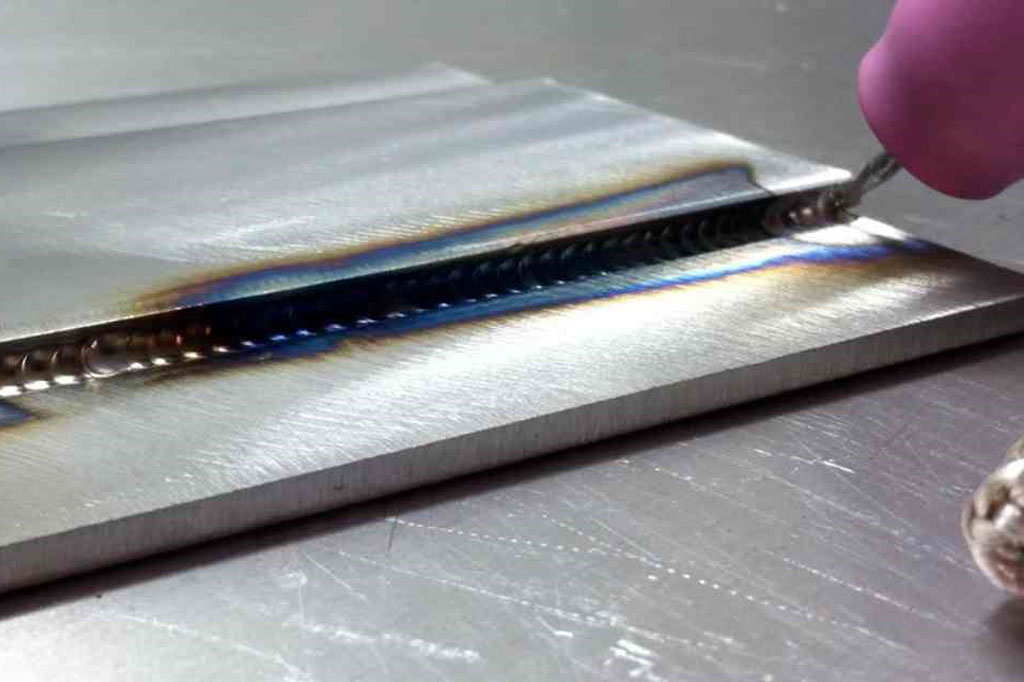

2. Нахлесточное соединение
A lap joint is created when two metal pieces overlap, forming a layered connection. This joint type is ideal for joining two pieces of metal of different thicknesses or for cases where a stronger, overlapping connection is needed.
Lap Joint Advantages:
- Allows for joining metals of different thicknesses.
- Offers a stronger bond due to the larger surface area of overlap.
Lap Joint Disadvantages:
- Prone to corrosion if not properly sealed, as gaps between layers can trap moisture.
- Increased material usage due to the overlap.
Lap Joint Welding Process
Lap joints can be welded using various methods, including spot welding, MIG welding, or TIG welding. The weld is typically applied along the edge of the overlapping metal, creating a strong bond between the two pieces. To minimize corrosion risk, welders often apply additional sealant or protective coatings.
Lap Joint Applications
They’re commonly used in sheet metal fabrication, automotive body panels, and applications requiring the joining of metals with different thicknesses. They are also commonly used in shipbuilding and aerospace applications.

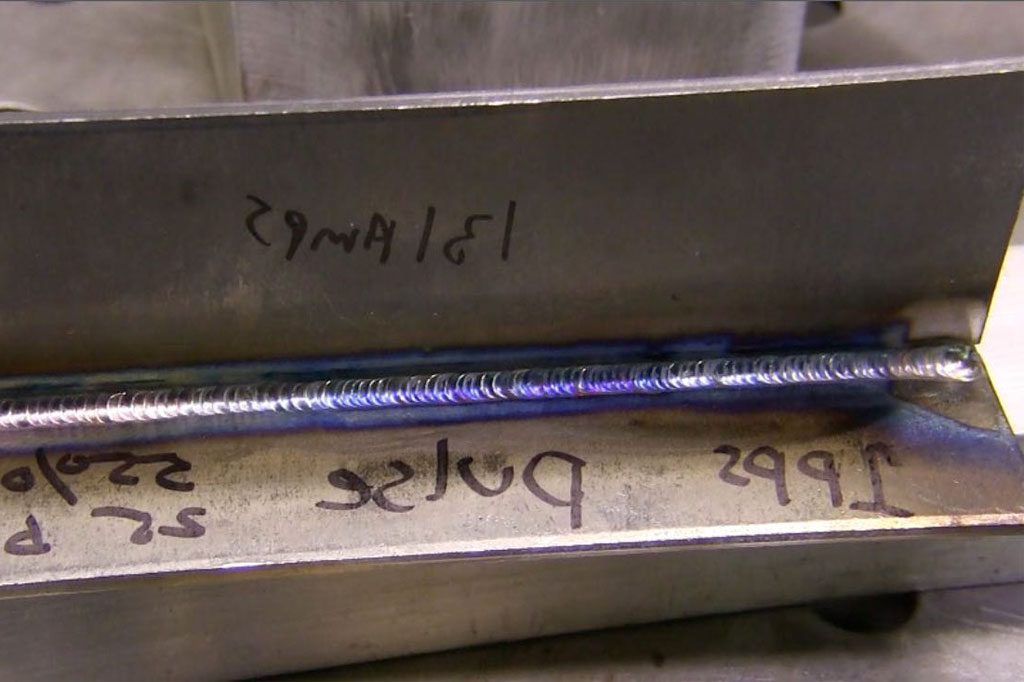

3. Тройниковое соединение
A tee joint is formed when two metal pieces meet at a right angle, creating a “T” shape. One piece of metal is placed perpendicular to the edge of the other, creating a joint that resembles the letter “T.”
Tee JointAdvantages:
- Provides strong support for load-bearing applications.
- Offers flexibility in terms of welding position and orientation.
Tee Joint Disadvantages:
- Prone to high levels of stress at the weld, which can cause cracking or failure over time.
- Precise alignment is crucial for achieving a strong weld.
Tee Joint Welding Process
Tee joints are typically welded using MIG, TIG, or arc welding. The weld is applied at the intersection of the two pieces, and in many cases, multiple passes may be required to achieve sufficient penetration and strength, especially for thicker materials.
Tee Joint Applications
Tee joints are commonly used in the construction of structural frames, metal furniture, and shipbuilding, as the Tee welded joint needs to support a vertical load.

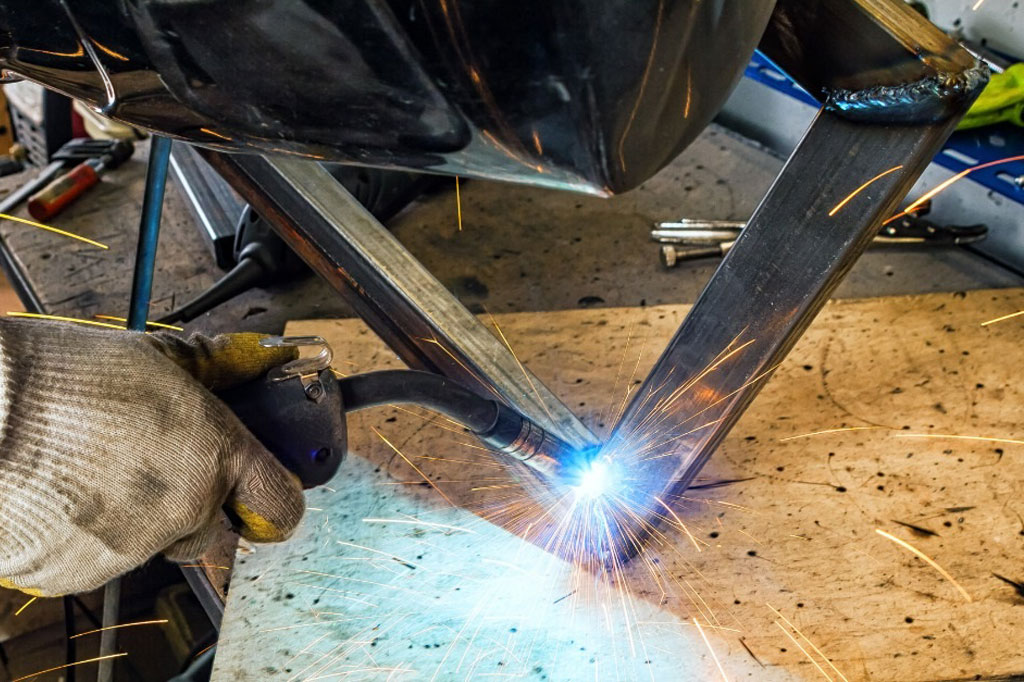

4. Угловое соединение
The corner joint occurs when two metal pieces meet at a right angle, often at the edge or corner. This joint type is frequently used in frame construction and box-like structures.
Corner Joint Advantages:
- Suitable for creating enclosed or open boxes and frames.
- Provides good load distribution when properly welded.
Corner Joint Disadvantages:
- Can be prone to distortion or warping due to the heat of welding.
- Welding in the corner of a tee joint requires precision to ensure adequate strength.
Corner Joint Welding Process
Corner joints are usually welded using MIG, TIG, or arc welding. Full penetration welding is typically necessary to ensure the joint’s strength and durability due to the exposed edges. Preheating the metal may be necessary for thicker materials to prevent warping.
Corner Joint Applications
Corner joints are used in the fabrication of frames, enclosures, metal boxes, various architectural structures, cabinets, and other welded metal assemblies.

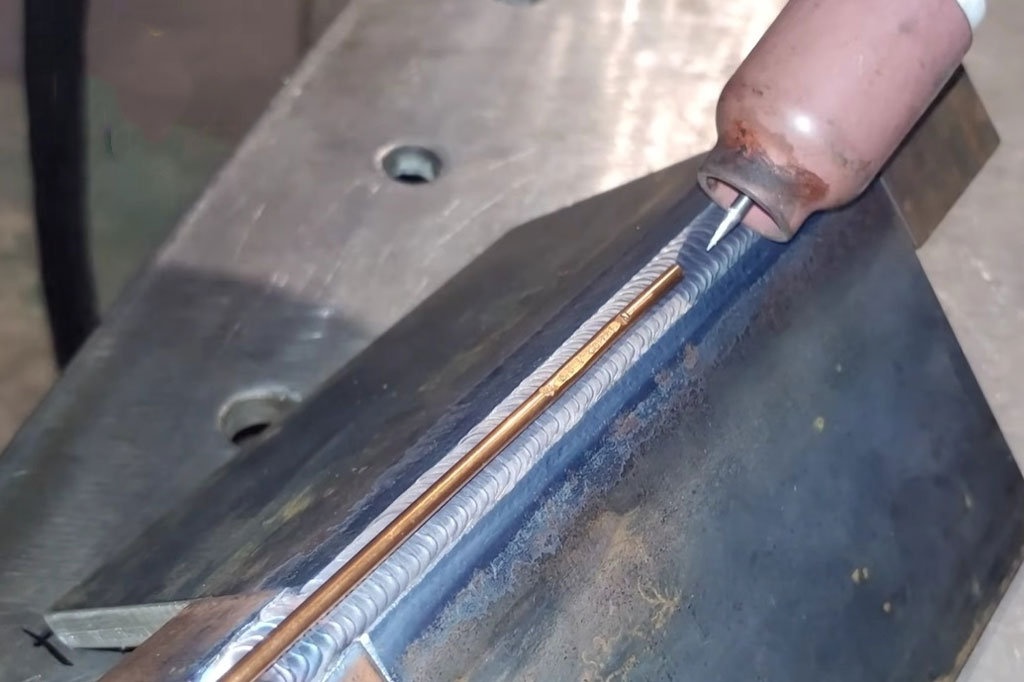

5. Краевой шов
Edge joints are created when the edges of two or more metal pieces are placed parallel to one another and welded together along the edge. This type of joint is typically used for thinner materials or in applications where the metals are not subject to significant stress.
Edge Joint Advantages:
- Suitable for thin materials where edge welding is required.
- Allows for minimal material usage.
Edge Joint Disadvantages:
- Not ideal for heavy-duty or high-stress applications.
- Limited strength compared to other joint types.
Edge Joint Welding Process
Edge joints are usually welded using MIG or TIG welding. The weld is applied along the aligned edges of the metal pieces, and in many cases, the weld must penetrate deeply to create a secure bond.
Edge Joint Applications
Edge joints are used in sheet metal fabrication, especially in applications like manufacturing heat exchangers, light metal frames, and other thin-walled structures. They are also used in the production of metal enclosures and cabinets.
Welding Considerations for Joint Types
Several factors must be considered when choosing a welding joint type for a project:
- Material Thickness: Some joints, like the butt and lap joints, are better suited for thicker materials, while edge joints are ideal for thinner metals.
- Stress Distribution: Tee and corner joints can handle higher loads but must be welded carefully to avoid stress concentration.
- Welding Position: Different joint types require specific welding positions (e.g., horizontal, vertical), which can affect ease of welding and the strength of the joint.
- Corrosion Resistance: Lap joints and edge joints may trap moisture, leading to corrosion, so additional protective measures may be needed.
Choosing the Right Joint Type
Selecting the appropriate welding joint depends on the project’s requirements, material properties, load conditions and working environment.
- Butt Joints are best for structures requiring smooth finishes and strong, straight connections.
- Lap Joints are ideal for joining thin materials or dissimilar thicknesses.
- Tee Joints work well for right-angle connections in structural load-bearing frameworks.
- Corner Joints are useful for assembling boxes or enclosures.
- Edge Joints are suitable for thin or lightweight materials that are not subjected to high stresses.
